| Model |
CS‑BAR‑MM‑K9 |
| Form Factor |

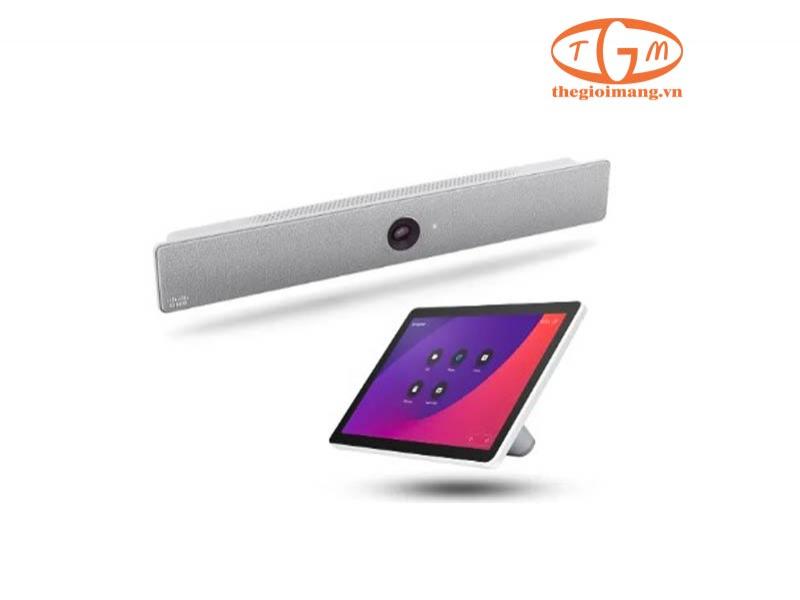

Integrated video bar appliance with built‑in camera, codec, speakers, and microphone array, that comes with the Room Navigator touch control panel. Display not included. Available in First Light or Carbon Black version. |
| Key Features |
Cisco Room Bar is a flexible video conferencing device designed to easily equip your huddle spaces and small meeting rooms with intelligent video collaboration. Featuring a 120‑degree field of view camera and easy installation, Room Bar powers stunning meetings on any platform, 4K presentations, spatial audio, presence detection, dual external display support, wired and wireless content sharing, and powerful room integrations. It can run as a native, codec‑powered collaboration appliance on Cisco Rooms and Microsoft Teams Rooms providing unmatched video interoperability, while also supporting BYOD experiences. |
| Screens |
Supports up to 2 external displays. Touch screen compatible. |
| Camera |
• 12MP camera |
| • 30 frames per second |
| • 1/2.3’’ CMOS |
| • 5x digital zoom |
| • f/2.5 aperture |
| • 120° horizontal field of view |
| • 95° vertical field of view |
| • Auto framing (face detect) |
| • Speaker tracking |
| • Frames multi‑participant AI framing |
| • Auto brightness, and white balance |
| • Fixed focus lens |
| • Support for virtual meeting zones |
| • Automatic image rotation when mounted upside down |
| • Optimal framing up to 4.5 meters (15 ft) from the device at 1080p resolution |
| • Optimal speaker tracking experience up to 3 meters from the device at 1080p resolution |
| Multi‑camera configurations |
N/A |
| Recommended Number of Participants |
Up to 6 people |
| Video Quality |
Up to 1080p60 |
| Resolution |
3840 x 2160 (16:9) |
| Video Standards |
H.263, H.264 |
| Content sharing |
Up to 3840 x 2160 at 15 fps |
| Multi‑stream |
N/A |
| Software Supported |
• Cisco RoomOS 11 or later |
| • Microsoft Teams Rooms on Android |
| • Zoom Rooms (coming soon) |
| • BYOD video conferencing (via USB‑C) |
| Signaling Protocol |
• H.323 |
| • SIP |
| • Webex |
| • WebRTC |
| Connectivity |
• 3.5mm analog audio input |
| • HDMI video input supports formats up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps |
| • USB‑C input supports formats up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps |
| • 2x HDMI video outputs supporting formats up to 3840 x 2160 at 60 fps (touchscreen compatible) |
| • USB 2.0 type A |
| • Ethernet (RJ‑45) 10/100/1000 for LAN |
| • Ethernet (PoE) (RJ‑45) for Cisco Room Navigator direct pairing |
| • MicroUSB port for maintenance |
| • Power adapter port |
| • Factory reset pinhole |
| • Wi‑Fi 802.11a/b/g/n/ac (2.4 and 5 GHz) – not available in non‑radio version |
| • Bluetooth® and Bluetooth® Low Energy – Not available in non‑radio version |
| Default Components |
• Main, integrated video bar unit of Room Bar (First Light or Carbon Black) featuring: |
| - Camera |
| - Speakers |
| - Microphones |
| - Computing engine |
| • Power adapter and country‑specific power cord |
| • Cisco Room Navigator touch controller (table‑stand or wall‑mount) |
| • Ethernet cable for Room Navigator (8 m/26.2 ft) |
| • Network cable, round (5 m/16.4 ft) |
| • HDMI cable (1.5 m/4.9 ft) |
| • Mount kit (for wall and screen) |
| • Privacy cover |
| Bandwidth Consumption |
Up to 20 Mbps |
| Audio Standards |
G.711, G.722, G.722.1, G.729, AAC‑LD, Opus |
| Audio Features |
• Stereo loudspeaker system with 2 high‑quality full range drivers, supporting spatial audio |
| • 4‑element beamforming microphone array |
| • 1x analog or 1x USB microphone input for extended pickup range |
| • Acoustic Echo Cancellation (AEC), Active Lip Synchronization, Automatic Gain Control (AGC) |
| • AI‑Powered, Adaptive Noise Removal, De‑Reverberation |
| • Full Duplex, Full‑Band Audio, Self‑Hear, Ultrasound Technology |
| PID |
Please consult the datasheet |
| Datasheet URL |
Cisco Room Bar Data Sheet |
