| Model |
TZ80 |
| Firewall General |
| Operating System |
SonicOS |
| Interfaces |

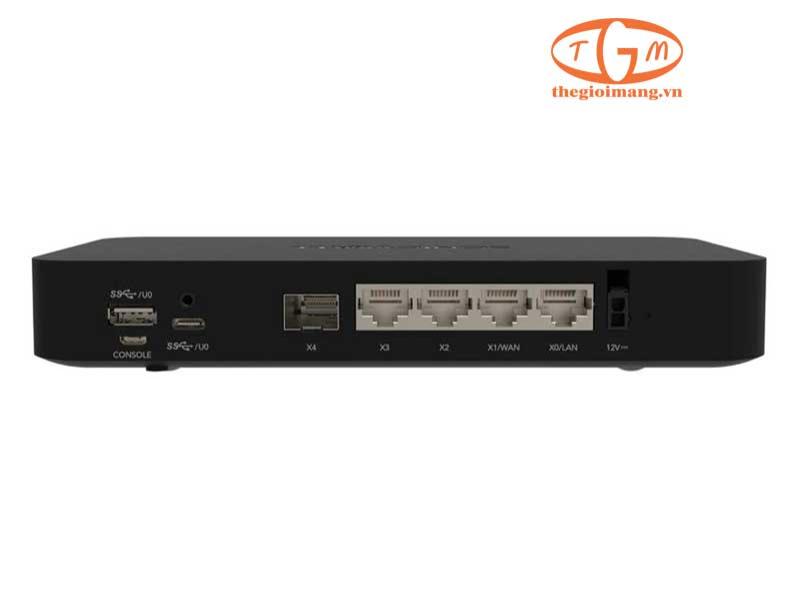

4 x 1GbE RJ45, 1 x 1GbE SFP, 1 Console, 1 USB-A/C |
| Management |
NSM (2.6+), CLI, SSH, Web UI, REST API |
| Single Sign-On (SSO) Users |
250 |
| VLAN interfaces |
64 |
| Access Points Supported (Maximum) |
2 |
| Hiệu năng Firewall/VPN |
| Firewall inspection throughput |
750 Mbps |
| Threat prevention throughput |
750 Mbps |
| Application inspection throughput |
750 Mbps |
| IPS thoughput |
750 Mbps |
| Anti-malware inspection throughput |
750 Mbps |
| TLS/SSL inspection and encryption throughput (DPI SSL) |
250 Mbps |
| IPSEC VPN throughput |
750 Mbps |
| Connections per second |
7.5 |
| Maximum connections (SPI) |
300 |
| Maximum connections (DPI) |
75 |
| Maximum connections (DPI SSL) |
10 |
| VPN |
| Site-to-site VPN tunnels |
50 |
| IPSec VPN clients (maximum) |
1 (nâng cấp tối đa 5) |
| SSL VPN licenses (maximum) |
1 (nâng cấp tối đa 5) |
| Encryption/authentication |
DES, 3DES, AES (128/192/256), MD5, SHA-1, Suite B |
| Key exchange |
Diffie-Hellman nhóm 1, 2, 5, 14 |
| Route-based VPN |
RIP, OSPF, BGP |
| Certificate support |
Verisign, Thawte, Cybertrust, RSA, Entrust, Microsoft CA, SCEP |
| VPN features |
NAT Traversal, DHCP over VPN, VPN dự phòng, DPD, route-based VPN |
| Global VPN client platforms supported |
Windows 10/11 |
| NetExtender |
Windows 10/11, Linux |
| Mobile Connect |
iOS, macOS, Android |
| Dịch vụ bảo mật |
| Deep Packet Inspection Services |
Anti-Virus, Anti-Spyware, IPS, DPI SSL |
| Content Filtering Service (CFS) |
HTTP/HTTPS theo URL, IP, từ khóa, nội dung |
| Comprehensive Anti-Spam Service |
Có |
| Application Visualization |
Có |
| Application Control |
Có |
| Capture Advanced Threat Protection |
Có |
| DNS Filtering |
Có |
| Cloud Secure Edge |
| Secure Private Access |
Có |
| Mạng (Networking) |
| IP address assignment |
Tĩnh, DHCP, PPPoE, L2TP, PPTP, DHCP server/relay |
| NAT modes |
1:1, 1:N, N:1, N:N, PAT, NAT linh hoạt, chế độ trong suốt |
| Routing protocols |
RIP, OSPF, BGP, định tuyến tĩnh, PBR |
| QoS |
Ưu tiên, giới hạn, đảm bảo băng thông, DSCP, 802.1e |
| Authentication |
LDAP, RADIUS, SSO, Novell, CAC, người dùng nội bộ |
| Local user database |
150 |
| VoIP |
H.323 v1-v5, SIP |
| Standards |
TCP/IP, UDP, ICMP, HTTP/S, IPSec, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
| Certifications |
FCC, CE, UL, RCM, VCCI, BSMI, ANATEL, KCC, CB, RoHS, REACH, WEEE... |
| High availability |
Active/Standby, đồng bộ trạng thái |
| Phần cứng (Hardware) |
| Form Factor |
Desktop |
| Power supply |
36W |
| Maximum power consumption (W) |
11.6W |
| Input power |
100–240V AC, 50–60Hz, 3A |
| Total heat disipation (BTU) |
39.6 BTU |
| Dimensions |
200.3 x 113.6 x 30.2 |
| Weight |
0.438 kg |
| WEE weight |
0.755 kg |
| Shipping weight |
0.973 kg |
| MTBF @26°C in years |
64.3 năm |
| Environment(Operating/Storage) |
0°C–40°C / -40°C–70°C |
| Humidity |
5–95% không ngưng tụ |
