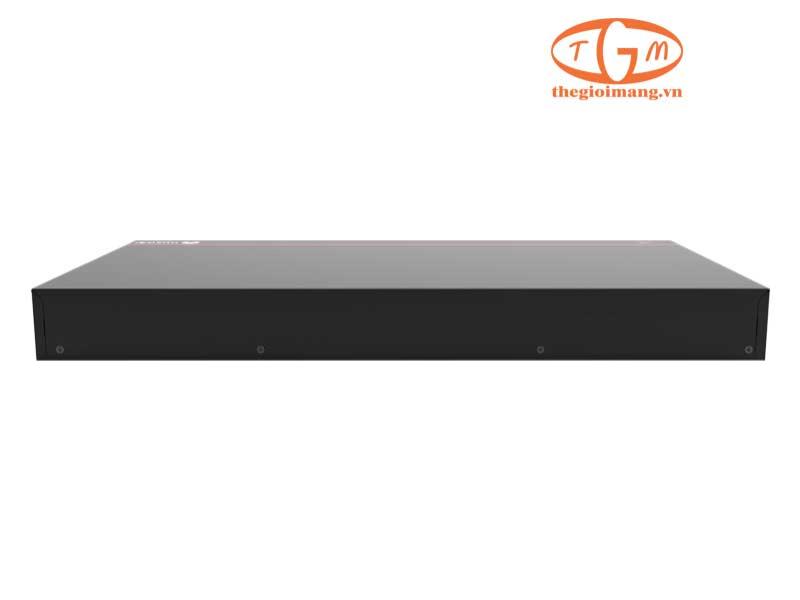

| Model |
NetEngine AR720 |
| Processor |
• ARM64 4-core |
| Forwarding performance |
• 9 Mpps to 25 Mpps |
| Number of connected terminals |
• 700 |
| Outbound bandwidth |
• 4 Gbit/s |

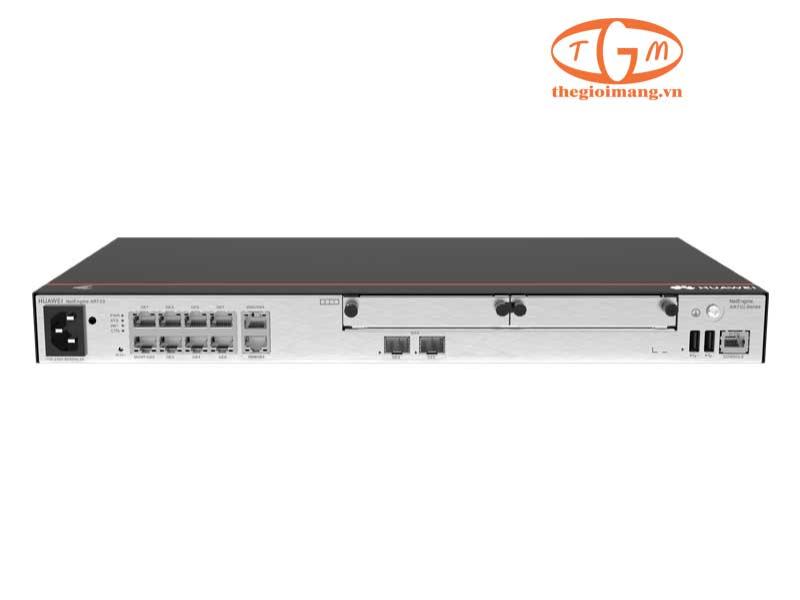

| Fixed WAN ports |
• 2 x GE combo ports |
| Fixed LAN ports |
• 8 x GE electrical ports (can be switched to WAN ports) |
| Serial auxiliary or console port |
• 1 x RJ45 console serial port |
| USB ports |
• 2 x USB ports |
| Memory |
• 4 GB |
| Flash |
• 1 GB |
| Dimensions excluding the parts protruding from the body (H x W x D) |
• 44.4 mm x 442.0 mm x 220.4 mm |
| Dimensions with the parts protruding from the body (H x W x D) |
• 44.4 mm x 442.0 mm x 225.2 mm |
| Dimensions of the packing box (H x W x D) |
• 90 mm x 570 mm x 390 mm |
| Weight (unconfigured) |
• 3.2 kg |
| Rack installation |
• IEC |
| Required space in a rack |
• 1 U |
| Rated input voltage (AC) |
• 100 V to 240 V |
| Rated input frequency (AC) |
• 50 Hz/60 Hz |
| Maximum input voltage (AC) |
• 90 V to 264 V |
| Maximum input current (AC) |
• 2 A |
| Maximum output power (AC) |
• 70 W |
| Maximum power consumption |
• 33 W |
| Fan module |
• Built-in unpluggable fan module |
| Airflow |
• Left to right |
| Noise |
• 52.3 dB |
| Operating temperature |
• 0°C to 45°C |
| Operating humidity |
• 5% to 95% (non-condensing) |
| Operating altitude |
• < 5000 m |
| Storage temperature |
• –40°C to +70°C |
| Storage altitude |
• < 5000 m |
| Software Features and Protocols |
| Basic functions |
• DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management |
| LAN |
• IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MAC address management, STP, etc. |
| IPv4 unicast routing |
• Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
| IPv6 unicast routing |
• Static route, routing policy, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
| Basic IPv6 functions |
• IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, and DHCPv6 |
| IPv6 tunneling |
• Manual tunnel, automatic tunnel, GRE tunnel, 6over4 tunnel, 6to4 tunnel, and ISATAP |
| Multicast |
• IGMPv1, IGMPv2, IGMPv3, PIM SM, PIM DM, MSDP, MBGP, IPv6 PIM, and MLD |
| MPLS |
• LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, and TE FRR |
| VPN |
• IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, and L2TPv3 VPN |
| QoS |
• DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance, congestion management, HQoS, MQC (traffic classifier, traffic behavior, and traffic policy), hierarchical QoS, and smart application control (SAC) |
| WAN optimization |
• Multi-fed and selective receiving, per-packet load balancing |
| Security |
• ACLv4/v6, domain-based stateful firewall, 802.1X authentication, MAC address authentication, Portal authentication, AAA, RADIUS, HWTACACS, PKI, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, attack source tracing, online behavior management, IPS, and URL filtering |
| Management and maintenance |
• Upgrade management, device management, web system, GTL, SNMP (v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, email/USB/DHCP-based deployment, NETCONF/YANG, CLI, NetStream, TWAMP, IP FPM, TCP FPM, IP accounting, and NQA |
