| Model |

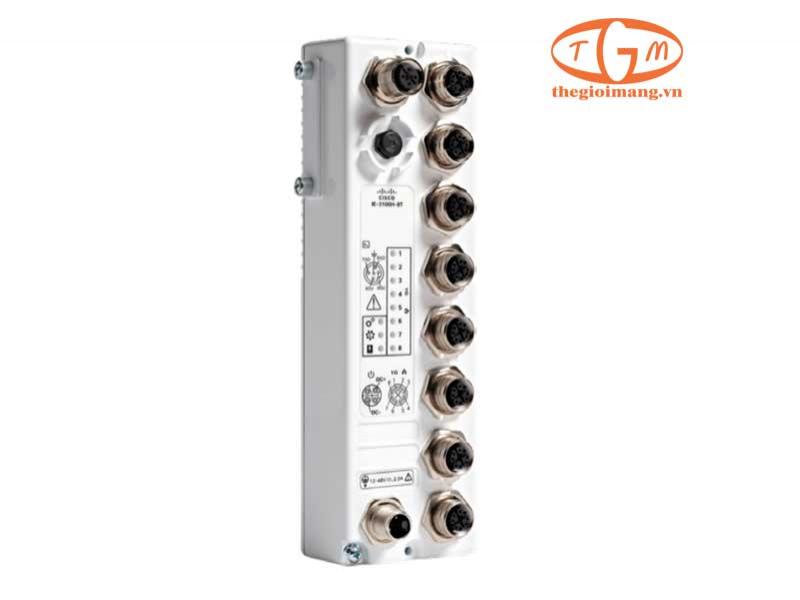

IE-3100H-8T-E |
| Hardware configurations |
| Total M12 Ports |
8 |
| 10/100 Fast Ethernet (D-code) ports |
- |
| 10/100/1000 Gigabit Ethernet (X-code) ports |
8 |
| Hardware specifications |
| Removeable Storage |
SD card |
| Alarms |
No alarm port |
| Console Ports |
1 (A-coded M12) |
| Power Input |
Single power source (L-coded M12) |
| Physical configurations |
| Dimensions (H x W x D) |
7.90 x 2.71 x 2.33 in (20.07 x 6.88 x 5.92 cm) |
| Weight |
1.65 lbs (0.75 kg) |
| Mounting |
Wall |
| Power specifications |
| Input Voltage Range |
12V to 48V nominal |
| 9.6V to 60V absolute |
| Max Current during normal operation |
1.4 A with 12V input |
| 0.7 A with 24V input |
| 0.35 A with 48V input |
| Inrush Current |
17.4 A for 0.15ms with 12V input |
| 42 A for 0.1ms with 24V input |
| 91.7 A for 0.1ms with 48V input |
| Power consumption |
11,6W |
| Rated MTBF (House) based on Telcordia Issue |
960,120 Hrs |
| Performance and scalability features |
| Forwarding Rate1 |
11.904 Mpps |
| Forwarding Bandwidth |
8 Gbps |
| Number of queues |
8 egress |
| Unicast MAC addresses |
8000 |
| Internet Group Management Protocols (IGMP) multicast groups |
512 |
| VLANs |
256 |
| IPv4 indirect routes |
2000 |
| Spanning Tree Protocol (STP) instances |
128 |
| DRAM |
4GB |
| SD card capacity2 |
16GB |
| Network Essentials license (perpetual) |
| Layer 2 switching |
802.1Q, RSTP (802.1w), LLDP (802.1ab), MSTP (802.1s), LACP (802.3ad) , Per-VLAN Rapid Spanning Tree (PVRST+), Per-VLAN Spanning Tree (PVST+), Rapid PVST (RPVST), Switch Port Analyzer (SPAN), Remote-SPAN (RSPAN), Flow-Based SPAN (FSPAN), STP, Storm Control, VLAN Trunk Protocol (VTP) v2/v3, 802.1Q Tunneling, Q-in-Q, EtherChannel |
| Multicast |
IGMP v1/v2/v3, IGMP snooping, Multicast Listener Discovery (MLD) snooping |
| Management |
WebUI, Management Information Base (MIB), Simple Network Management Protocol (SNMP), syslog, Dynamic Host Configuration Protocol (DHCP) server, NETCONF, RESTCONF, Embedded Event Manager (EEM), Cisco Network Plug and Play (PnP), Express Setup, Delayless IPDT, Resilient Ethernet Protocol (REP), Zero Touch Deployment (ZTP) |
| Security |
DHCPv6 Guard, IP Source Guard, IPv6 Destination Guard, IPv6 Neighbor Discovery Multicast Suppress, IPv6 Router Advertisement (RA) Guard, IPv6 Snooping, IPv6 Source/Prefix Guard, IPv6 Neighbor Discovery Duplicate Address Detection, PACL, VACL, Network Edge Authentication Topology (NEAT), HTTPS, RADIUS, TACACS+, X.509v3, Secure Shell (SSH), DHCP Snooping, 802.1X, Client Information Signaling Protocol (CISP), Dynamic ARP Inspection (DAI), authentication, authorization, and accounting (AAA), Secure Copy Protocol (SCP), Security Exchange Protocol (SXP) |
| Quality of Service (QoS) |
802.1p, priority queuing, Modular QoS command-line interface (MQC), class-based shaping and marking, Ingress policing, egress queuing and shaping, Auto-QoS, Differentiated Services Code Point (DSCP) mapping and filtering, low-latency queuing |
| Layer 3 routing |
Inter-VLAN routing, static routing |
| Industrial Ethernet |
Locate Switch, Swap Drive, Generic Object-Oriented Substation Events (GOOSE) messaging, SCADA Protocol Classification, PTP (Default Profile, Power Profile 2011, Power Profile 20171), Network Time Protocol (NTP) to PTP, Sampled Values |
| Redundancy |
Resilient Ethernet Protocol (REP) ring, Media Redundancy Protocol (MRP), Fast MRP, G.8032 Ethernet Ring Protection (ERP) Protocol version 1, PTP over MRP |
| Automation |
YANG, NETCONF, RESTCONF |
| Compliance specifications |
| Industrial Automation |
IEC 62443-4-1 |
| IEC 62443-4-2 |
| Emissions, immunity and regulatory compliance |
Emissions (Class A): |
| FCC 47 CFR Part 15 Subpart B |
| EN55032/CISPR 32 |
| VCCI |
| AS/NZS CISPR 32 |
| CISPR 11 |
| ICES 003 |
| CNS 15936 |
| KS C9832 |
| Immunity: |
| CISPR35/EN55035 |
| AS/NZS CISPR 35 |
| KS C 9835 |
| Industry standards |
EN 61000-6-2 Immunity standards for Industrial Environment (ENV) |
| EN 61000-6-4 Emission standards for Industrial ENV |
| EN 61000-6-1 Immunity standards for Light Industrial ENV |
| EN 61326-1 Industrial Control |
| EN 61131-2 Programmable Controllers1 |
| NEMA T2S Traffic Controller Assemblies1 |
| IP66/IP67 |
| ODVA Industrial Ethernet/IP |
| Safety standards and certifications |
UL/CSA 60950-1 |
| NOM to NOM-019-SCFI (through partners and distributor) |
| UL/CSA 62368-1, EN62368-1, CB to IEC623680-1 with country deviations |
| UL61010-2-201 |
| CSA C22.2, No 142 |
| Operating environment |
Operating temperature: |
| –40° to 167°F (–40° to 75°C) (fan cooled enclosure with 200 lfm on unit) |
| –40° to 158°F (–40° to 70°C) (vented enclosure with minimum 40 lfm on unit) |
| –40° to 140°F (–40° to 60°C) (sealed enclosure operating) |
| +185°F (85°C) (short term operating for 16 hours) |
| EN 60068-2-1 |
| EN 60068-2-2 |
| EN 61131 |
| Altitude: |
| Up to 15,000 feet (4,572 m) with no temperature derating |
| Up to 40,000 feet (12,192 m) with temperature derating down to 25°C (77°F) |
| Storage environment |
–40 to 185°F (–40 to 85°C) |
| Altitude: 40,000 feet (12,192 m) |
| IEC 60068-2-14 |
| Humidity |
IEC60068-2-3 |
| IEC60068-2-30 |
| Shock and vibrations |
EC 60068-2-27 (Operational shock: 30G 11ms, half sine) |
| IEC 60068-2-27 (Non-operational shock 55-70G, trapezoidal) |
| IEC 60068-2-6, IEC 60068-2-64, EN 61373 (operational vibration) |
| IEC 60068-2-6, IEC 60068-2-64, EN 61373 (non-operational vibration) |
| Corrosion |
IEC 60068-2-52 (salt mist, method 3) |
| IEC 60068-2-60 (flowing mixed gases) |
| Automotive |
E-Mark (ECE R10) |
| Railway |
EN50155:2021 (clauses 13.4.1-6, 13.4.9, 13.4.10, 13.4.13)1 |
| EN50121-3-2:20211 |
| EN50121-4:20211 |
| EN61373:20101 |
| EN50124-1:20171 |
| AREMA C&S Manual:20221 |
| EN50153:2020 Clause 8.31 |
| EN45545-21 |
| Warranty |
Five-year limited hardware warranty on all IE3100 Rugged Series product IDs and all Industrial Ethernet (IE) power supplies. See more information in the Warranty section. |
