| Descriptions |

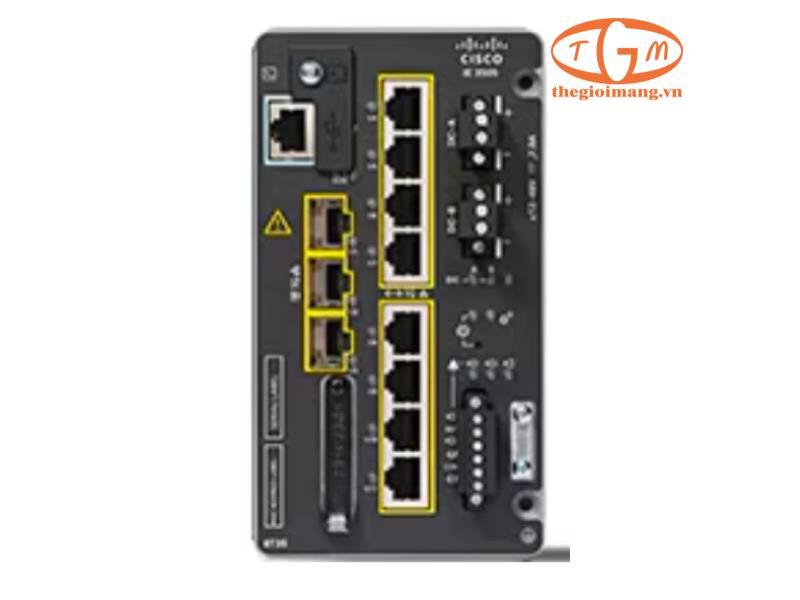

IE-3500-8T3S-E |
| Total ports |
11 |
| 1000/100/10M RJ45 Copper ports |
8 |
| SFP ports |
3x 1G/100M |
| Max PoE budget (Base switch only) |
- |
| Max Total PoE Budget with Expansion Module |
- |
| Software license |
Network Essentials |
| Hardware specification |
| PoE power budget |
Not applicable |
| Removable storage |
USB, SD card |
| Alarms |
2 alarms in, 1 alarm out |
| Console ports |
1 RS-232 (via RJ-45), 1 USB Mini Type B |
| Power inputs |
Dual DC power inputs |
| Physical configurations |
| Dimensions (H x W x D) |
3.48 x 6.00 x 5.29 inches
8.84 x 15.24 x 13.44 cm |
| Weight |
3.90 lbs 1.77 kgs |
| Mounting |
DIN rail |
| Performance and scalability features |
| Forwarding rate |
Line rate for all ports and all packet sizes |
| Number of queues |
8 |
| Unicast MAC addresses |
24000 |
| Internet Group Management Protocol (IGMP multicast groups) |
1024 |
| No. of Active VLANs |
1024 |
| No. of VLAN IDs |
4096 |
| IPv4 Indirect routes |
7000 |
| IPv6 Indirect routes |
1522 |
| Spanning Tree Protocol (STP) instances |
128 |
| Access Control Entries (PACL/VACL/RACL) |
1536 |
| DRAM |
8 GB |
| Flash (User Accessible) |
5.1 GB |
| SD card capacity1 |
16 GB |
| Jumbo Frames2 |
9198 bytes |
| Power consumption |
29W |
| Specifications |
| Electromagnetic emissions |
FCC 47 CFR Part 15 subpart B Class A
EN 55032/CISPR 32 Class A
VCCI Class A
AS/NZS CISPR 32 Class A
CISPR 11 Class A
ICES 003 Class A
CNS 15936 Class A
KS C9832 Class A
EN 300 386 |
| Electromagnetic immunity |
CISPR 35
EN55035
KS C9835
EN 61000-4-2 Electro Static Discharge (air – 15kV, contact – 8kV)
EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP)
EN 61000-4-4 Electromagnetic Fast Transients (4kV)
EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP)
EN 61000-4-6 Conducted RF (10Vrms UTP)
EN 61000-4-8 Power Frequency Magnetic Field (1000A/m)
EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m)
EN 61000-4-16 Conducted CM Disturbances (30V, Cont/ 300V, 1 sec)
EN 61000-4-17 Ripple Immunity DC Power (10%)
EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz)
EN-61000-4-29 DC Voltage Dips and Interruptions |
| Industry standards |
EN 61000-6-2 Industrial Immunity
EN 61000-6-4 Industrial Emissions
EN 61000-6-1 Light Industrial Immunity
EN 61326-1 Measurement, Control and Laboratory Equipment
IEEE 1613 Electric Power Stations Communications Networking (In-progress)
EN/IEC 61850 - 3 Electric Substations Communications Networking (In-Progress)
ODVA Industrial EtherNet/IP
IP30 |
| Safety standards and certifications |
Information Technology Equipment:
UL/CSA 62368-1, IEC 62368-1 CB with all country deviations
Industrial floor (control equipment):
UL/CSA 61010-2-201
Hazardous Locations:
UL121201(Class l, Div 2, groups A-D)
CSA 213 (Class l, Div 2, groups A-D)
UL/CSA 60079-0 (Class l, Zone 2, Gc/IIC)
IEC 60079-0, -7 IECEx test report (Class l, Zone 2, Gc/IIC) cabinet enclosure required
EN 60079-0, -7 ATEX certificate (Class l, Zone 2, Gc/IIC) cabinet enclosure required |
| Operating environment |
Operating temperature:
-40°C to +70°C (40 LFM vented enclosure)
-40°C to +60°C (sealed enclosure)
-40°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure)
+85°C (type tested for 16 hours)
Altitude: up to 15,000 feet, no derating
Altitude: up to 40,000 feet, 25°C Max |
| Storage environment |
Temperature: - 40°C to +85°C
Altitude: 40,000 feet
IEC 60068-2-14 |
| Humidity |
Relative humidity of 5% to 95% non-condensing
IEC 60068-2-78
IEC 60068-2-30 |
| Shock and vibration |
IEC 60068-2-27 (operational shock, 50G, 3ms, half sine)
IEC 60068-2-27 (non-operational shock, 65-80G, 9ms, trapezoidal)
IEC 60068-2-6 (vibration-sinusoidal, 5Hz-150Hz) |
| Corrosion |
IEC 60068-2-52 (salt fog) (In-Progress)
IEC 60068-2-60 (flowing mixed gas) (In-Progress) |
| Environment |
RoHS, WEEE, REACH compliant |
| MTBF (hours) |
518,889 Hrs |
| Network Essentials License (Perpetual) |
| Layer 2 switching |
IEEE 802.1Q, 802.1w,802.1ab,802.1s, 802.3ad, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP VTPv2, VTPv3, EtherChannel, Q-in-Q tunneling, voice VLAN, PVST+, MSTP, RSTP, Selective Q-in-Q, Layer 2 Tunneling |
| Multicast |
IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier, Multicast Listener Discovery (MLD) |
| Management |
WebUI, MIB, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, FRSPAN, ERSPAN, Express setup, NETCONF, RESTCONF |
| Security |
Port security, 802.1x, Dynamic Host Configuration Protocol (DHCP) snooping, dynamic ARP inspection, IP source guard, guest VLAN, MAC authentication bypass, 802.1x multidomain authentication, storm control - unicast, multicast, broadcast, SCP, SSH, SNMPv3, TACACS+, RADIUS server/client, MAC address notification, BPDU guard, Access Lists(PACL/RACL/VACL), SUDI 2099 (Secure Unique Device identifier), Full Flexible NetFlow (FNF), MACsec-128 |
| Quality of Service (QoS) |
Ingress policing, rate limit, egress queuing/shaping, auto QoS |
| IPv6 |
IPv6 host support, SNMP over IPv6, HTTP/HTTP(s) over IPv6, SNMP over IPv6, Syslog over IPv6, DHCPv6 relay source, DHCPv6 bulk lease query (RFC 5460), IPv6 stateless Auto Config, SCP/SSH, Radius, TACACS+, NTP over IPv6, IPv6 VRF aware BGPv6, IPV6 ND cache expire, IPv6 support for TFTP, IPv6 DNS transport, IPv6 QoS, IPv6 FHS RA Guard, IPv6 FHS DHCPv6 Guard |
| Layer 3 routing |
Inter-VLAN routing, Static routing, Open Shortest Path First, OSPF v3, Routing Information Protocol (RIP), Policy-Based Routing (PBR) |
| Industrial Ethernet |
CIP Ethernet/IP, IEEE 1588 PTP v2 (default and power)1, PROFINET |
| TSN |
Frame-Preemption2 (802.3br, 802.1QBu) |
| Redundancy |
Resilient Ethernet Protocol (REP) ring, PROFINET-Multi Ring Protocol (MRP), REP Fast, REP Segment ID Auto-discovery2, REP ZTP Support, Parallel redundancy protocol (PRP)3, PTP over PRP3, High-Availability Seamless Redundancy (HSR-SAN)3, Device Level Ring (DLR)3, HSR-PRP Dual Redbox3 |
| Utility |
Dying gasp, SCADA protocol classification – GOOSE messaging, MODBUS TCP/IP |
| Automation |
YANG, NETCONF, RESTCONF |
| Industrial Management |
Layer 2 switching with 1:1 switch Network Address Translation (L2NAT) for uplink ports |
| IOx |
Container (Native Docker), Cisco Cyber Vision, Secure Equipment Access2, Cisco ThousandEyes2 |
