| Descriptions |

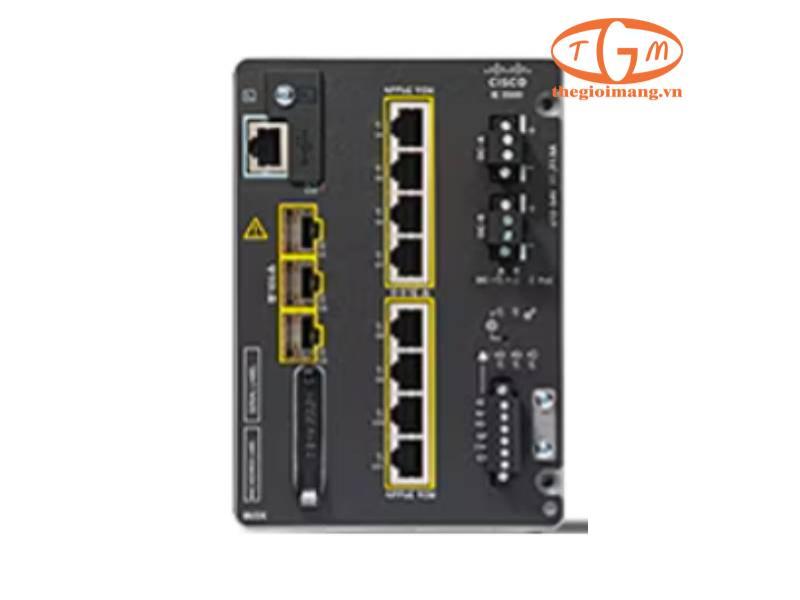

IE-3500-8U3X-A |
| Total ports |
11 |
| 1000/100/10M RJ45 Copper ports |
8 PoE/PoE+/ 4PPoE |
| SFP ports |
3x 10G/1G |
| Max PoE budget (Base switch only) |
480W |
| Max Total PoE Budget with Expansion Module |
480W |
| Software license |
Network Advantage |
| Hardware specification |
| PoE power budget |
480W |
| Removable storage |
USB, SD card |
| Alarms |
2 alarms in, 1 alarm out |
| Console ports |
1 RS-232 (via RJ-45), 1 USB Mini Type B |
| Power inputs |
Dual DC power inputs |
| Physical configurations |
| Dimensions (H x W x D) |
4.38 x 6.00 x 5.29 inches
11.13 x 15.24 x 13.44 cm |
| Weight |
5.05 lbs 2.29 kgs |
| Mounting |
DIN rail |
| Performance and scalability features |
| Forwarding rate |
Line rate for all ports and all packet sizes |
| Number of queues |
8 |
| Unicast MAC addresses |
24000 |
| Internet Group Management Protocol (IGMP multicast groups) |
1024 |
| No. of Active VLANs |
1024 |
| No. of VLAN IDs |
4096 |
| IPv4 Indirect routes |
7000 |
| IPv6 Indirect routes |
1522 |
| Spanning Tree Protocol (STP) instances |
128 |
| Access Control Entries (PACL/VACL/RACL) |
1536 |
| DRAM |
8 GB |
| Flash (User Accessible) |
5.1 GB |
| SD card capacity1 |
16 GB |
| Jumbo Frames2 |
9198 bytes |
| Power consumption |
49W |
| Specifications |
| Electromagnetic emissions |
FCC 47 CFR Part 15 subpart B Class A
EN 55032/CISPR 32 Class A
VCCI Class A
AS/NZS CISPR 32 Class A
CISPR 11 Class A
ICES 003 Class A
CNS 15936 Class A
KS C9832 Class A
EN 300 386 |
| Electromagnetic immunity |
CISPR 35
EN55035
KS C9835
EN 61000-4-2 Electro Static Discharge (air – 15kV, contact – 8kV)
EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP)
EN 61000-4-4 Electromagnetic Fast Transients (4kV)
EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP)
EN 61000-4-6 Conducted RF (10Vrms UTP)
EN 61000-4-8 Power Frequency Magnetic Field (1000A/m)
EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m)
EN 61000-4-16 Conducted CM Disturbances (30V, Cont/ 300V, 1 sec)
EN 61000-4-17 Ripple Immunity DC Power (10%)
EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz)
EN-61000-4-29 DC Voltage Dips and Interruptions |
| Industry standards |
EN 61000-6-2 Industrial Immunity
EN 61000-6-4 Industrial Emissions
EN 61000-6-1 Light Industrial Immunity
EN 61326-1 Measurement, Control and Laboratory Equipment
IEEE 1613 Electric Power Stations Communications Networking (In-progress)
EN/IEC 61850 - 3 Electric Substations Communications Networking (In-Progress)
ODVA Industrial EtherNet/IP
IP30 |
| Safety standards and certifications |
Information Technology Equipment:
UL/CSA 62368-1, IEC 62368-1 CB with all country deviations
Industrial floor (control equipment):
UL/CSA 61010-2-201
Hazardous Locations:
UL121201(Class l, Div 2, groups A-D)
CSA 213 (Class l, Div 2, groups A-D)
UL/CSA 60079-0 (Class l, Zone 2, Gc/IIC)
IEC 60079-0, -7 IECEx test report (Class l, Zone 2, Gc/IIC) cabinet enclosure required
EN 60079-0, -7 ATEX certificate (Class l, Zone 2, Gc/IIC) cabinet enclosure required |
| Operating environment |
Operating temperature:
-40°C to +70°C (40 LFM vented enclosure)
-40°C to +60°C (sealed enclosure)
-40°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure)
+85°C (type tested for 16 hours)
Altitude: up to 15,000 feet, no derating
Altitude: up to 40,000 feet, 25°C Max |
| Storage environment |
Temperature: - 40°C to +85°C
Altitude: 40,000 feet
IEC 60068-2-14 |
| Humidity |
Relative humidity of 5% to 95% non-condensing
IEC 60068-2-78
IEC 60068-2-30 |
| Shock and vibration |
IEC 60068-2-27 (operational shock, 50G, 3ms, half sine)
IEC 60068-2-27 (non-operational shock, 65-80G, 9ms, trapezoidal)
IEC 60068-2-6 (vibration-sinusoidal, 5Hz-150Hz) |
| Corrosion |
IEC 60068-2-52 (salt fog) (In-Progress)
IEC 60068-2-60 (flowing mixed gas) (In-Progress) |
| Environment |
RoHS, WEEE, REACH compliant |
| MTBF (hours) |
474,807 Hrs |
| Network Advantage License (Perpetual) |
| IP routing Protocols |
OSPF (IPv4 and IPv6), BGP (v4 and v6), ISIS (v4 and v6), EIGRP (v4 and v6), HSRP (v4 and v6), BFD Echo Mode for OSPFv3 |
| Virtualization |
VRF-lite, VRF-Aware SGT |
| Security |
Cisco TrustSec®: Security group ACL (SGACL), SGACL logging, Extensible Authentication Protocol – Transport Layer Security (EAP-TLS), IEEE 802.1AE MACsec-256, SD-Access Policy Extended Node, SD-Access Fabric Edge Node, Generic Routing Encapsulation (GRE) |
| Fabric |
Cisco SDA fabric edge2, BGP-EVPN leaf node2 |
| IP Multicast |
PIM sparse mode (PIM-SM), PIM dense mode (PIM-DM), MSDP, Multicast routing BSR (IPv4/IPv6), Auto RP (IPv4), Embedded RP (IPv6) |
| Industrial Ethernet |
Layer 3 Network Address Translation (L3NAT) |
